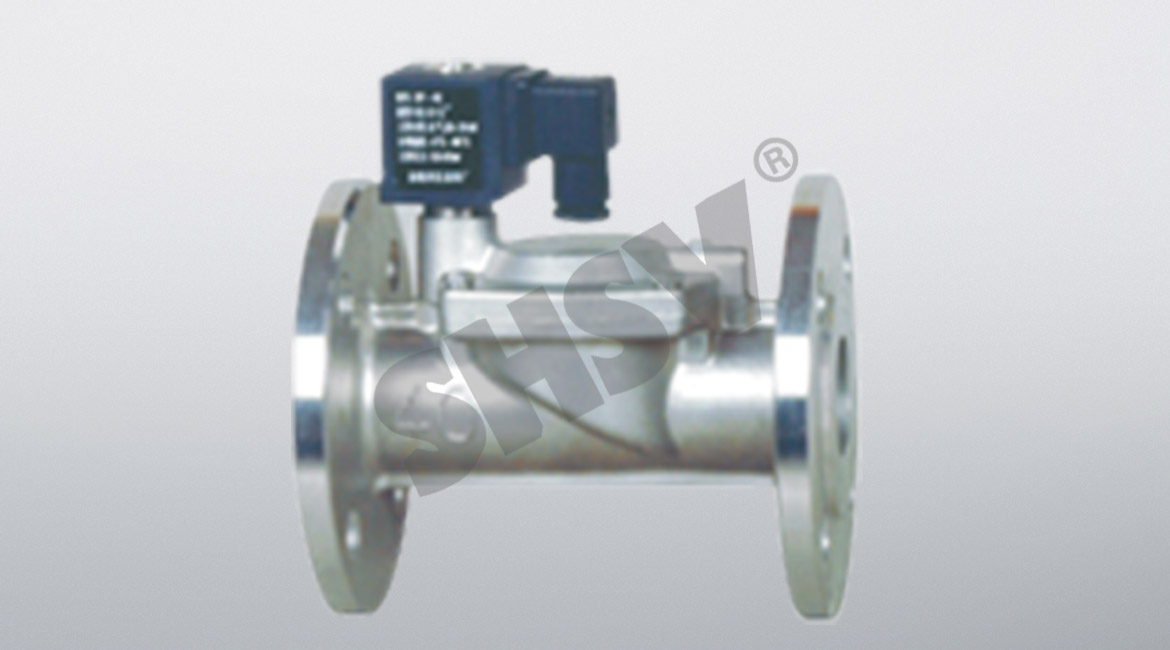

Flanged large diameter liquid, gas solenoid valve
Model: DF-F
Medium: liquid, water, gas, oil (hereinafter 20CST)
Medium temperature: -5 ~ 80 ℃
Operation mode: pilot
Pressure: normally closed: 0.3 ~ 12bar2
Normally open: 0.3 ~ 8bar2
Valve Body Material: Cast Iron (Precision Casting)
Diaphragm Seal, Seal Material: NBR
Coil Protection Coil: Coil IP54

Flange solenoid valve size:

model

Flange D

Flange D1

Flange D2

DF-40F

150

Φ110

4-Φ18

DF-50F

165

Φ125

4-Φ18

DF-65F

185

Φ145

4-Φ18

DF-80F

200

Φ160

8-Φ18

DF-100F

220

Φ180

8-Φ18

DF-125F

250

Φ210

8-Φ18

DF-150F

285

Φ240

8-Φ22

DF-200F

340

Φ295

12-Φ22

DF-65jF

185

Φ145

4-Φ18

DF-80jF

200

Φ160

8-Φ18
